Pedal To The (Heavy) Metal

Seymour Duncan introduce the SFX-04 Twin Tube Mayhem guitar preamp      02/11/07

Pedal To The (Heavy) Metal

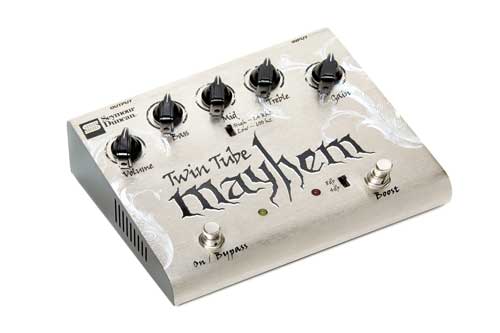

Capitalizing on the success of their previous stompbox offerings, Seymour Duncan have released their latest pedal, the SFX-04 Twin Tube Mayhem, a high gain guitar preamp that uses a duet of subminiature 6205 vacuum tubes and is voiced to evoke the heaviest sounds that define metal.
Seymour Duncan tell us that the new-old-stock, USA-made Phillips Sylvania 6205s represent the pinnacle of tube technology. They were designed and manufactured to meet the U.S. Government’s MIL-E-1 spec for reliability under conditions of severe shock, vibration, and temperature. They provide extremely long service life and exhibit virtually no tendency toward microphonics.
High-quality vacuum tubes are only part of the key to a great-sounding tube preamp. Too often, inexpensive tube gear runs in “starved plate mode,� where the tubes function like clipping diodes and do not actually amplify. The Twin Tube Mayhem employs a fully encapsulated, toroidal transformer to achieve the high plate voltage required for true tube amplification and maximum dynamic range. Additional gain is achieved with a high voltage, low noise, discrete Class A input stage. The solid state input stage increases the resistance of the stomp-box to microphonics. The result, say Seymour Duncan, is maximum dynamic range, the most gain, the smoothest tone, and the low-order harmonics one expects from a great tube preamp.
The Twin Tube Mayhem also features a user-selectable 4dB or 8dB boost. This allows for lead and rhythm levels to be set independently. Voiced for heaviest rock tones, Seymour Duncan say that the Mayhem offers raw tube sound, thick distortion, and present low order harmonics. The Twin Tube Mayhem also features true bypass with gold relays, over 90 dB of gain, a silent switching circuit designed to eliminate pops and clicks, and a heavy-duty chassis with a nickel plated chassis and stylish ‘chicken head’ knobs. A 16-volt AC transformer is also included.
Specifications:
  • Gain
    • Before Level Compensation – 97 dB
    • After Level Compensation – 71 dB
  • Nominal Output Level – 0.25 Vrms (-10dBu)
  • Max. output level before clipping – 5 Vrms (16dBu)
  • Input Impedance: 100KΩ
  • THD @ 100mV RMS output – .5%
  • Noise @ Output – 4mV (< 3dB hum content)
  • Boost Footswitch Gain: Two selectable boosts, 4dB and 8dB. No effect on tone, just increased level.
  • Active Equalization Section:
    • Bass Control: 126 Hz, Q = 1.5, Gain = +/-12dB
    • Midrange Control: 596 Hz / 1389 Hz, Q = 1.5, Gain = +/-12dB
    • Treble Control: 2.93 KHz, Q = 1.4, Gain = +/-12dB
  • Power consumption – 11 W
  • External Dimensions – 7.50â€� X 6.62â€� X 1.96â€� (190mm X 168mm X 50mm)
  • Weight – 3.15 lbs. (1.43KG)
Pricing and Availability:
TBA More information:
