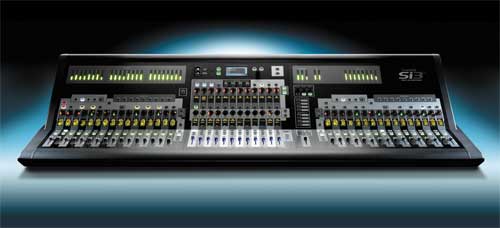

Currently riding high with tours and engineers thanks to the success of the Vi Series digital consoles, Soundcraft has launched a mid-market partner console in the Soundcraft Si3. This new desk is designed for live use on both touring sound systems and in fixed installations and its intuitive operation and high input and bus count makes it a perfect choice for House of Worship sound systems. Soundcraft say that theatre users will also find the Soundcraft Si3 very applicable in their area.
Hereâ€™s all the details directly from the Soundcraft press releaseâ€¦
What is particularly nice about the Si3 is it all comes in one chassis â€“ console surface, all input and output connections, power supply â€“ so it can literally drop in and replace an existing analogue desk as almost certainly no additional cabling would be required to install it. This compact footprint desk can directly handle 64 mono inputs, 4 stereo inputs and has full connectivity for all 35 output busses (24 Aux/Group, 8 Matrix and Left/Right/Centre mix buses), something you donâ€™t find often on digital consoles at the price level of the Si3. Add to this 4 LexiconÂ® effects processors, 12 VCA groups, 8 Mute groups and bar graph metering for all 35 bus outputs and you begin to see what a package the Si3 is.
Pricing and Availability:
So what about the operating surface, is it easy to use? The obvious lack of what is now standard fare on most digital consoles, a large central screen, brings hope that cumbersome centralised channel operation is a thing of the past, and indeed when you look at the controls in detail you see it may well be. Although the Si3 does have a small central touch screen, it is really there for console management, cue-lists, labelling etc. All the normal day-to-day mixing operations are carried out adjacent to the channel faders continuing Soundcraftâ€™s philosophy of â€˜where you look is where you controlâ€™. An amazingly crisp and bright OLED display clearly shows important channel data for every fader on the desk, while in the centre section, OLEDs provide the same for the output faders.
Soundcraft has revisited the control topology employed on the ground-breaking Spirit 328 and 324 digital consoles, and made it even easier. The model is this - above each fader is a rotary encoder, the function of which changes according to the mode selected. This â€˜bankâ€™ of encoders, known as the VCS or Virtual Channel Strip can be set to control every function of a channel (known as Channel mode), so mic gain, EQ, dynamics, auxes, panning are all controlled as if you had a normal analogue channel strip laid sideways in front of you. The VCS also incorporates all the switching you would find on an individual analogue channel strip (48v, Phase Reverse, EQ in etc.). Alternatively, in what is called Global mode, each encoder controls the same function for each channel. So, for example, the encoders could control all the mic gains, pans or a chosen Aux bus (very useful for creating monitor mixes).
The encoder and OLED displays located in the output section are used primarily for output signal controls such as EQ, dynamics, Matrix contributions etc. but also double up as dedicated controls for the 4 onboard Lexicon processors.
When using the Lexicon processors, you can expand the controls to adjust virtually every parameter available, giving you outstanding control over the effects. Each of the four Lexicon engines can be assigned by the user to any channel. The gates and compressors, as you would expect, draw on the heritage of BSS Audio and dbx, Soundcraftâ€™s sister companies within Harman.
The output encoders and OLEDs can also be assigned to control EQ and Dynamics control for any selected Input or Output channel for those who prefer central control.
Like its bigger sisters the Soundcraft Vi4 and Vi6, the Si3 uses the patented Soundcraft FaderGlowâ„¢ system to show what mode your faders are in, whether they are controlling inputs, aux or effects sends, bus outputs etc. For example, when faders are controlling Aux sends, the faders glow yellow, while for VCAâ€™s they glow blue. In fact the colour codings closely follow the Soundcraft Vi6 setup, so engineers moving between consoles will be equally at home with both.
Complete desk settings may be stored as snapshots, as you would expect on a digital console, and these can then be sequenced from a Cue list on the central touch screen and controlled with dedicated snapshot automation buttons. Global snapshot filtering is also available.
Under the hood of the Si3 is an array of new technology, most notably EMMA, a single-board digital mixing console with an embedded operating system. This compact pcb holds not only the processing and DSP to run the mixer with its EQ and dynamics, but also four Lexicon AudioDNA chips to provide the Si3 with arguably the best effects available in the pro audio world. The team of developers at Soundcraft was responsible for the entire development and coding of this new mixing core which is also the base core of further new console designs already in development.
But how does it sound? Needless to say with the wealth of experience in digital platform development that Studer and Soundcraft have with the Vista and Soundcraft Vi Seriesâ€™, the Si3 has inherited the same sound quality pedigree, and coupled with Graham Blythâ€™s talents in mic pre-amp design and the extensive development of the integral dynamics and gates and Lexicon FX, sound quality is a given.
On the rear of this highly-featured console are all the I/O connectors youâ€™ll need. Sixty-four XLRâ€™s for the mic/line inputs, 4 stereo line level inputs, 24 bus output XLRâ€™s, 8 matrix output XLRâ€™s Left/Right/Centre mix output XLRâ€™s, Left/Right/Centre monitor output XLRâ€™s and comprehensive internal and external talkback and Oscillator connections. There are also 8 analogue insert connections which allow outboard processing to be inserted into any input channel output bus.
The power supply for the Si3 is integral to the chassis, and a secondary PSU module can be fitted for total redundancy. There are also four spare slots for other optional cards such as MADI interfaces or AES/EBU inputs.
Of course, the Si3 has been developed with Harmanâ€™s HiQnet networked audio system in mind, and connection to the HiQnet network is included.
To make preparation of the console setup easier, Soundcraft is also planning to release an off-line editor for the Si3. This self-contained suite runs on a PC or laptop, and allows configuration of the console which can then be downloaded to the desk, saving precious on-site setup time. Just like with the Virtual Vi software for the Soundcraft Vi Series, engineers can move between different consoles and take their shows and settings with them.
The Soundcraft Si3 is bound to appeal to regional tour sound companies and regional theatres, medium sized Houses of Worship and Corporate Event sound companies.
