New Desktop Studio Interface From MOTU

Track16 offers 16 inputs and 14 outputs      13/06/12
New Desktop Studio Interface From MOTU


MOTU has announced Track16, a 16 x 14 desktop studio interface with mixing and effects. The company tells us that Track16 connects via FireWire or hi-speed USB 2.0 to a Mac or PC computer and features elegant design, compact size, simple one-touch operation, and studio-grade sound quality. Together, the Track16 base unit and included breakout cable provide a total of sixteen inputs and fourteen outputs, hybrid FireWire/USB connectivity, optical digital I/O, MIDI I/O, and SMPTE time code sync. Advanced features include a 16-bus digital mixer (with reverb, EQ, and compression), audio analysis tools such as an FFT with spectrogram "waterfall", and an instrument tuner.
Cooper, MOTU Director of Marketing, told Sonic State, "Track16 combines studio-grade recording with one-touch operation. Just push the button for the channel you want to control and turn the knob. Track16 delivers all the I/O you need for a well-equipped desktop studio, combined with a smart-looking design that brings high-end feel to your system."
Here's more details in MOTU's own words:
An elegant desktop studio interface

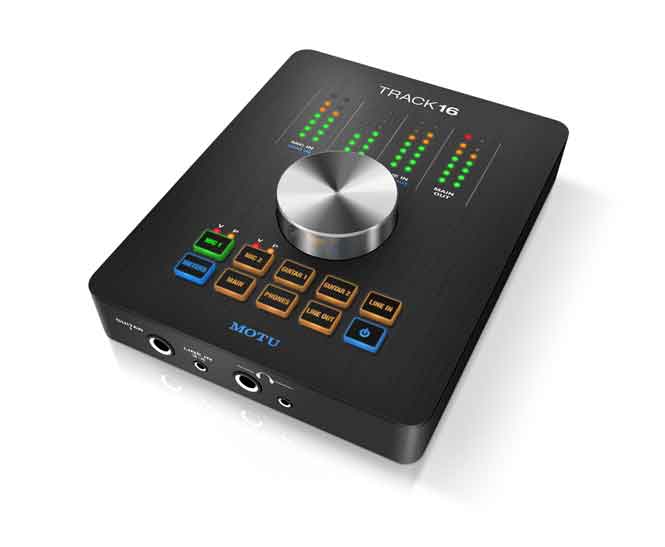

Track16 consists of a base unit and breakout cable. The base unit (approximately 5 x 8 x 1 inches) is constructed from solid aluminum cast metal, with a sleek, brushed-aluminum top. The top panel provides a large, multi-function knob, ten backlit buttons, and four pairs of 7-segment level meters. The front panel provides several connectors, including a hi-Z guitar input, eighth-inch stereo "mini" line input, and two mirrored headphone jacks (on quarter-inch and eighth-inch connectors). The rear panel provides a DB25 connector for the breakout cable, a FireWire 400 connector (on a 9-pin Type B jack, similar to other MOTU "hybrid" audio interfaces), a standard USB 2.0 port, and optical in/out jacks, which provide eight channels at 1x sample rates, four channels of SMUX at 2x samples rates, and stereo TOSlink (optical S/PDIF) at rates up to 96 kHz. The optical ports are ideal for system expansion, such as adding eight more mic inputs with a MOTU 8pre interface.
The custom-designed DB25 breakout cable is 44 inches long (tip to tip), with twelve female connectors for the rest of Track16's I/O connections, including two XLR mic inputs, stereo balanced quarter-inch line inputs, stereo balanced quarter-inch main outs, stereo quarter-inch line outputs, a second hi-Z guitar input, MIDI IN/OUT, and a DC power input for the included power adapter. Individually shielded twisted pairs and balanced analog connections ensure optimum audio quality and integrity. An optional breakout box with the same connectors as the included breakout will be sold separately (pricing and availability TBA).
Track16 can draw bus power from the FireWire port, which supplies enough power to drive 48V phantom power for two independent mic preamps. Under bus power, users have the option of operating Track16 without the breakout cable, allowing them to record from the guitar input and listen on headphones with just their laptop computer.
The included DC adapter connects to the breakout cable (or breakout box) and powers Track16 for stand-alone use or connection to a computer using USB. Track16's USB 2.0 connection provides across-the-board compatibility with Mac and PCs, including forward compatibility with the USB 3.0 connections on Apple's latest MacBook and Mac Pro computers.
Track16 operation
Track16 operation is simple. The top-row buttons select input channels; the bottom-row buttons select output channels. Turn the knob to adjust the selected channel volume. The large, multi-function knob (1.75 inches in diameter and 0.5 inches tall) is a slightly detented rotary encoder with a smooth, solid feel. Push it to mute/unmute the selected channel or to toggle phantom power or pad for each mic input. Users can also control CueMix bus input level by pressing both the input and the desired output bus. For example, to control the mix bus volume for the 2nd guitar input being routed to the line outputs, press GUITAR 2 and LINE OUT. They both illuminate and you are now controlling the CueMix bus fader for GUITAR 2.
Track16's buttons are backlit with multi-color LEDs to facilitate operation in dark studio or stage environments. From the factory, the bottons glow amber (orange), except for the currently selected channel, which glows bright green. Six other color schemes are available in various combinations of green, red and amber.
Four pairs of 7-segment level meters provide monitoring of all analog inputs and outputs. Press the METERS button to toggle between the channels labeled in white and those labeled in blue. The main out meters remain dedicated to the main outs at all times.
A complete, hybrid "mk3" interface feature set
In most other respects, Track16 is a close sibling to MOTU's current line of "mk3" hybrid audio interfaces, such as the popular UltraLite-mk3 and 828mk3 interfaces, sharing their hybrid connectivity to Macs and PCs, 16-bus CueMix FX mixing engine, on-board effects processing (including classic reverb, modeled console EQ, and vintage compression), stand-alone operation, Precision Digital Trimā„¢, SMPTE time code read/write capabilities, included AudioDeskā„¢ workstation software, audio analysis tools, and an instrument tuner.
Pricing and Availability:
Track16 will ship in Q3 of 2012. Price is $595 USD.
More information:
More From: MOTU
Even more news...

6 Comments...  Post a comment    original story
Brian from USA    Said...

The base unit looks slick but I hate to think what the breakout cable looks like!

13-Jun-12 07:49 AM


CR78    Said...

Modelled after RME's Babyface with the addition of FW.

13-Jun-12 07:59 AM


Hidden Driveways    Said...

Which, of course was "modelled after" the Apogee Duet with the addition of Windows compatibility, more channels and ADAT I/O.

13-Jun-12 09:09 AM


Dr. Feelgood    Said...

That's a very stingy complement of I/O for $600. I guess the "16" figure is padded by ADAT optical I/O, but of course you can't use that without buying yet another box.

13-Jun-12 11:05 AM


CI    Said...

Just can't wait for the day when a company like MOTU is going to release something like the 24IO but with a control surface to provide basic mixing functionnality when not plugged to a daw

I almost consider all audiocard counting the ADAT ligthpipe in/out as false advertising.

13-Jun-12 08:20 PM


Hidden Driveways    Said...

If you don't count the ADAT as I/O, you're not getting it. If you have a Duet and a cheapy Ultragain PRO-8, you can use a total of two microphones to record a live band into a computer. If you have a Track16 and a PRO-8, you can use 10 microphones to record into your computer. A far cry from false advertising.

14-Jun-12 09:26 AM
