SSL Introduces New Converters

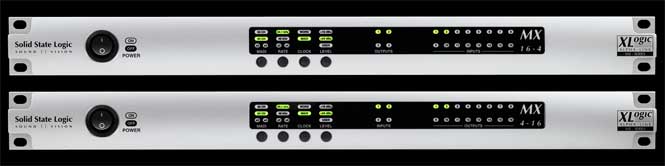

The Alpha-Link MX range consists of two different 1 U units that can be used individually or combined to create larger systems. Each unit features 64 channel digital audio I/O via Fibre Optic MADI In/Out connections which can be used to connect to any suitably equipped MADI device including SSL's own MadiXtreme, MX4 and Delta-Link computer audio interfaces, or to cascade multiple MX units. The 'Alpha-Link MX 16-4' has 16 analogue inputs and 4 analogue outputs, making it an ideal 16 channel capture device with 4 outputs for artist and studio monitoring. The 'Alpha-Link MX 4-16' has 4 analogue inputs and 16 analogue outputs, making it an ideal solution for 16 channel analogue summing with 4 channels of audio capture. Up to four MX units can be cascaded in any combination in a daisy chain. In this way systems with up to 80 analogue connections which are routable to a single 64 channel MADI In/Out connection can be created. MX units have a switchable reference level to enable matching with the rest of your studio system, with a range of settings between +24dB and +14dB. SSL says that Alpha-Link MX units are configured via a set of simple, intuitive front panel controls with status indicator LED's providing clear status and level information.

Alpha-Link MX units are available bundled with an SSL MadiXtreme 64 Mac or PC audio interface.

Key Features

• High quality SSL A-D/D-A converter technology
• 64 channel Fibre Optic MADI digital audio In/Out
• Alpha-Link MX 16-4: 16 analogue In, 4 analogue Out (balanced)
• Alpha-Link MX 4-16: 4 analogue In, 16 analogue Out (balanced)
• Cascade up to 4 Units for up to 80 analogue connections
• 44.1 to 96kHz operation with varispeed up to ± 10% (192kHz operation will be available as a free firmware upgrade by 31/12/2012)
• Switchable reference level with a range of settings between +24dB and +14dB
• Perfect Partner for SSL MadiXtreme, MX4 & Delta-Link interfaces
• Simple front panel setup controls
• Dedicated tri-colour signal activity LED's
• BNC Word Clock sync In/Out
• Rear panel analogue connection via standard 25 pin D-Sub

Pricing and Availability:

Alpha-Link MX is available now from SSL Resellers worldwide. Alpha-Link MX 16-4: £849, $1449, 1091.60€ + VAT or Sales Tax MX 16-4 I/O Bundle: MadiXtreme 64 & Alpha-Link MX 16-4: £999, $1699, €1276.47 + Local Taxes

Alpha-Link MX 4-16: £849, $1449, 1091.60€ + Local Taxes MX 4-16 I/O Bundle: MadiXtreme 64 & Alpha-Link MX 4-16: £999, $1699, €1276.47 + VAT or Sales Tax

More information:

• www.solidstatelogic.com/music/io
