PreSonus Re-Announces The ADL 700 Channel Strip

Features a class A tube preamplifier, FET-based compressor and four-band semi-parametric EQ      09/07/12
PreSonus Re-Announces The ADL 700 Channel Strip

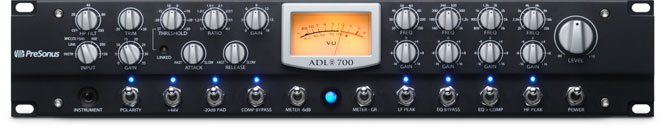

PreSonus has announced the ADL 700 channel strip, which combines a high-end Class A tube preamplifier with a fully variable, FET-based compressor and a four-band semi-parametric equalizer. The new channel strip provides separate balanced XLR mic, balanced XLR line, and 1/4" TS instrument inputs and a single balanced XLR output.

And yes, you may think you were imagining things, this was actually announced several years ago, but never shipped. Since then, the design has been refined with work done on the EQ and compression elements, though  the basic ADL pre-amp part remains unchanged. You can see it in the flesh at booth 410 if you happen to be visting the Summer NAMM session in Nashville later this week.


Here's all the details in Presonus' own words:
The ADL 700 incorporates a single-channel version of the award-winning PreSonus ADL 600 two-channel tube preamplifier, which was designed by famed tube-circuit designer Anthony DeMaria. PreSonus and DeMaria teamed up to create a distinctive Class A, discrete design. It incorporates one 12AT7 and two 6922 vacuum tubes per channel, operating with ±300V power rails for maximum headroom and superb tone. The dual-transformer design ensures low-noise operation, with maximum common-mode rejection. This results in an ultra-low-noise tube preamp with a big, warm, smooth, clear, distinctive sound.


Among the hallmark features of ADL-series preamps is an Input Source Select switch with variable mic-input impedance. This switch enables you to choose among signal sources and patches the selected input through the signal chain, completely bypassing the other two inputs. It also provides a choice of four mic-input impedances: 1500 , 900, 300, and 150 ohms. Lowering or raising the ADL 700 mic-input impedance can create subtle coloring and filtering effects, enabling you to get a wider variety of tonalities without using the EQ.


The ADL 700's FET-based compressor and semi-parametric EQ were custom-designed by Robert Creel, the mastermind behind many of PreSonus' most beloved analog circuits, including the XMAX™ preamp. FET (Field-Effect Transistor) compressors use transistors to emulate a triode-tube sound. This type of compressor generally provides a faster attack time and better repeatability than the optical compressors that are more commonly found in channel strips in this price class.


The ADL 700 compressor features include fully variable attack, release, threshold, ratio, makeup gain, and bypass. When Threshold is turned fully counterclockwise to the ST position, the onboard compressor controls are bypassed, and compression is controlled externally via a Stereo Link connection to a second ADL 700.


Of course, the preamp offers 48V phantom power, polarity reverse, and a -20 dB pad. In addition, it provides variable mic-input gain, employing an 8-position rotary switch that provides 35 dB of gain in 5 dB increments. A Trim potentiometer (±30 dB) allows you to make fine adjustments to the final preamp stage of the ADL 700 input.


You also get a -12 dB/octave high-pass filter whose frequency threshold can be set at 20 Hz, 40 Hz, 80 Hz, or 200 Hz, or it can be turned off completely.


The 4-band semi-parametric EQ was designed with musicality in mind, combining isolated filters and optimized, per-band Q to provide subtler signal shaping without harsh artifacts. All bands have Gain (±16 dB) and Frequency controls, with overlapping frequency ranges and fixed Q (0.6). The low and high bands are switchable between shelving and peak.


Dual-mode analog VU metering enables monitoring of output and gain-reduction levels. A -6 dB switch offsets the meter for use with hot source signals. A master level control adjusts the overall output from -80 to +6 dB.


With its extensive feature set, ultra-low noise (-100 dB S/N ratio), >73 dB gain, extended frequency response of 10 Hz to 45 kHz, and top-of-the-line sound, the ADL 700 is a superb creative tool for serious recording engineers and musicians.


Pricing and Availability:
The ADL 700 is expected to ship in the fourth quarter of 2012 with an expected MAP/street price of $1,999
