US Moog introduces the Werkstatt CV Expander      13/01/15

Connectivity For Your Werkstatt


Buying Choices
Affilliate Links help support the site

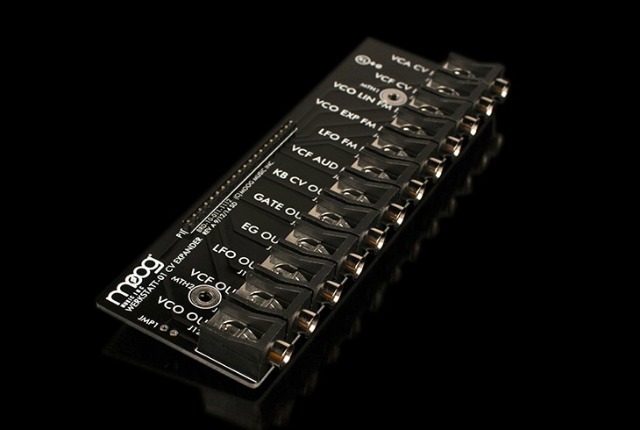

Moog's newly-introduced Werkstatt-01 CV Expander converts Werkstatt's 20pin patchable expansion header to 12 grounded 3.5mm jacks. Moog says that this allows your Werkstatt to easily interface with external CV-equipped analog gear.

INPUTS

  • VCA: 0V to +5V in VCA EG Mode, +/-2.5V in VCA ON Mode
  • VCF: -5V to +5
  • VCO LINEAR FM: +/-2.5V (This is an inverting control input)
  • VCO EXPONENTIAL FM: -5V to +5V, 1V/Octave, trimmable
  • LFO CV: - 5V to +5V (Negative CV slows LFO more than panel)
  • VCF AUDIO: Unbuffered/Unmixed AC coupled input to VCF.



OUTPUTS

  • KB CV: Nominal 0.3V/semitone from 1 octave keyboard (Attenuate for 1V/Octave)
  • GATE: 0V (off) to +5V (on) gate signal generated from low note priority/ legato Keyboard circuit. (This jack may also be used as a GATE INPUT.)
  • EG: Simple ASD or AD type Envelope Generator, 0 to +5V signal
  • LFO: -2.5 to +2.5V wave shape selected from LFO Wave Switch.
  • VCF: -2V to +2 V signal for audio or CV uses.
  • VCO: 0V to +5V signal, shape selected by VCO Wave Slide Switch.




Pricing and Availability:
$39.99

More information:
