AESNY11: High Resolution Reference Monitor System

Guitar Center Professional debuts new Ocean Way HR-3 System      24/10/11

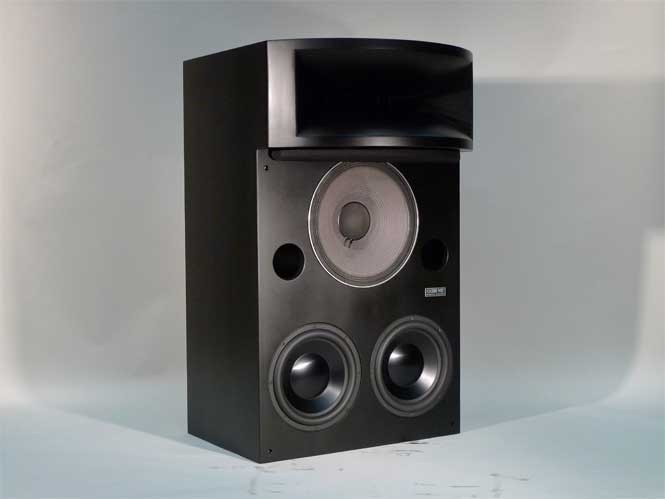

AESNY11: High Resolution Reference Monitor System


Guitar Center Professional (GC Pro), the outside sales division of Guitar Center that focuses on the needs of professional users, and the exclusive U.S. distributor of the famed Ocean Way Monitoring Systems, has announced the introduction of the HR-3 High Resolution Reference Monitor System. They tell us that, intended as a high-definition reference point to sonically judge and discern intricate musical balances for final mixes, the Ocean Way HR-3 monitors will satisfy the most discriminating audiophile, yet still be capable of meeting the most demanding dynamic range and accuracy required by studio professionals. GC Pro say that, what separates the HR-3 from other high-end audiophile loudspeakers, apart from its use by professionals, is its capacity to provide virtually unlimited dynamic range while maintaining absolutely matched uniform frequency response between channels.
Here's all the details direct from GC Pro:
Designed by Allen Sides, the GRAMMY® Award-winning engineer, producer and mixer who founded Ocean Way Recording, the new HR-3 monitor system is the culmination of almost 40 years of his experience designing high resolution studio speaker systems for his many studios and a wide variety of commercial installations, including George Lucas' Skywalker Ranch scoring stage; Trevor Horn's Sarm Studios in London; and Walt Disney's Hollywood Records, as well as private installations for musical artists like Gwen Stefani, Dave Grohl and Beck.
The two sides from 1k to 20k typically fall within 1dB of each other, creating absolute symmetry in regards to stereo imaging. The HR-3's uniform dispersion, coupled with very smooth off-axis response from its 15-inch mid bass driver, allows for a very wide listening window, helping to eliminate the narrow "sweet spot" effect. The HR-3's twin 12-inch subwoofers also produce extended and detailed low end to 20Hz. The unit's power handling is an impressive 800 Watts continuous for the twin sub bass woofers, 400 Watts continuous for the mid bass woofers and 100 Watts continuous (650 Hz and up) for the high frequency driver. The HR-3 is capable of producing a maximum SPL of over 110 db at six (6) feet, 20 to 20kHz.
The Ocean Way HR-3 (in addition to the HR-2) was deigned to bridge the gap between superb audiophile speakers and accurate professional studio monitors. There is nothing currently manufactured anywhere in the world at any price that looks, sounds or performs like the Allen Sides Signature Series monitors. The monitors integrate brilliant horn designs, never fully realized from the late 1950s, with exceptional wide bandwidth, low distortion drivers and a tri-amplified / equalized electronic package second to none.
Like all Ocean Way monitors, the HR-3 is specially engineered to reveal things in users' best recordings and mixes they may have never heard and provide dynamics they may have not thought possible. Every nuance is clearly and starkly evident. From a recording engineer's standpoint, these are invaluable assets, allowing for the best recording and mixes possible, and from the audiophile's standpoint, their best recordings will sound simply exceptional.
Ocean Way HR-3 specifications
  • Frequency response +/- 2dB, 20Hz – 20kHz
  • Symmetry between channels +/- 0.5 dB, 1k to 20kHz
  • Maximum SPL – Over 110 dB at 6 feet, 20Hz to 20kHz
  • Maximum Power Handling Capacity:
  • High Frequency Driver Max 100 Watts continuous, 650 Hz and up (Note: 1 watt in at 1k measured at 3 feet produces 108 dB)
  • Mid Bass Woofer max 400 Watts continuous
  • Twin Sub Bass Woofers max 800 Watts continuous
  • High Frequency horn with a 90-degree by 40-degree dispersion has a 500Hz cutoff
  • Crossover points: 650Hz and 80Hz, 18 dB per octave
Component description
  • High Frequency driver has a 19,000 gauss magnetic structure and titanium diaphragm with aluminum voice coil, two-inch throat
  • Mid Bass woofer is 15-inch and has an 11,000 gauss magnetic structure with an aluminum voice coil
  • Sub Bass woofers are twin 12-inch and have 11,000 gauss magnetic structures
Weights and size:
  • 305 lb, 28" width x 29" max depth x 46" height, each cabinet
About Ocean Way Recording and Allen Sides
Allen Sides, the GRAMMY® Award-winning engineer, producer and mixer who founded Ocean Way Recording, developed these renowned speaker systems. His studios and his Ocean Way Monitoring Systems have since helped artists like The Rolling Stones, Eric Clapton, Eminem, Janet Jackson and Radiohead, to name a few, create milestone music recordings. Through an exclusive arrangement with GC Pro, the famed Ocean Way Monitoring Systems can now be custom tailored and installed in commercial recording facilities, private studios, home theaters and a variety of other critical listening environments. Mr. Sides designed, built and owns Ocean Way Studios Hollywood, Ocean Way Studios Nashville, Ocean Way Studio St. Barth's at Eden Rock and Record One Studios Sherman Oaks. Together, these constitute the most award-winning and successful music studios in the world. Mr. Sides has also personally recorded over 500 albums, many of which have become audiophile classics. Albums recorded in Mr. Sides' studios have sold in excess of 1 billion copies. Mr. Sides brings a new dimension and understanding to what is possible in high-end speaker design, and the Impact is the realization of this experience.
About Guitar Center Professional/Guitar Center
Celebrating its 10th anniversary this year, Guitar Center Professional is the outside sales division of Guitar Center that focuses on the needs of professional users. Its clientele includes recording studios, audio engineers, producers, recording and touring musicians, live sound venues, post production facilities and more. Emphasizing extraordinary individualized service via local account managers, GC Pro offers expert consultation and a comprehensive selection of the world's finest equipment for music and audio professionals.
Pricing and Availability:
TBC More information:
